Product Parameter
Function | Pesticide spraying, weeding and transporting |
Power Type | Petrol-electric Hybrid |
Power Specifications | 15kw petrol engine + 5*45AH large-capacity battery |
Wheel Type | Caterpillar |
Overall Dimensions | 190cm(L)*120cm(W)*115cm(H) |
Ground Clearance | 17cm |
Pesticide Tank Volume | 450L(super large) |
Spraying Range | 15m wide, 6m high |
Atomizing Effect | 150-400μm (droplet size too small, will be blown by wind; too large, will drip down) |
Climbing Ability | 30° MAX climbing angle, 15° MAX inclination |
Movement Precision | RTK accurate positioning, self-driving precision ±5cm deviation |
Movement Speed | 3km/h MAX |
Maximum Load | 1000kg |
Operation Time | 1 tank of petrol ≥8h; 1 tank of pesticide ≥26min |
Operation Efficiency | 5.93 acre/h |
Operation Method | Remote Control Mode & Autonomous Mode |
Nozzle | 12 adjustable(can adjust 30°) double heads(0.8mm diameter and 1.2mm diameter) nozzles |
Safety | Electronic fence, ultrasonic radar, automatic stop before barriers |
Intelligence | Real-time positioning, low pesticide liquid level alarm |

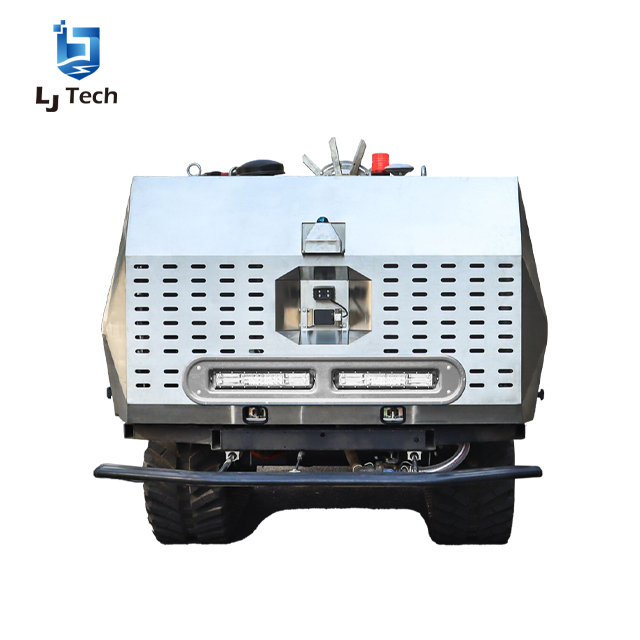

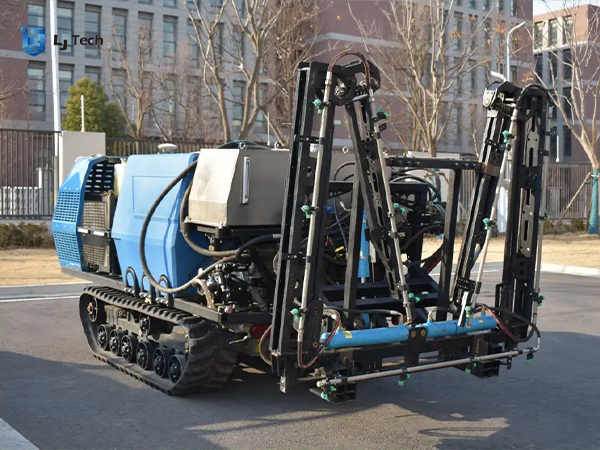

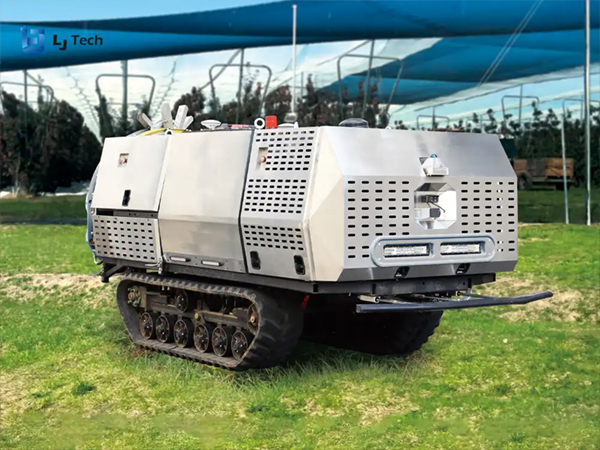

LJ Tech Multi-function Orchard Robot can move independently, separating human and pesticide, protecting human safety.
With different modules, it can also weed and transport heavy things.
Its autonomous satellite navigation mode can free the operator to have more energy on other things.
An operator can operate 2 machines at the same time.
It's widely applicable to dwarf greenhouses or tall trees.
LJ Tech orchard sprayer, more professional in orchard spraying!

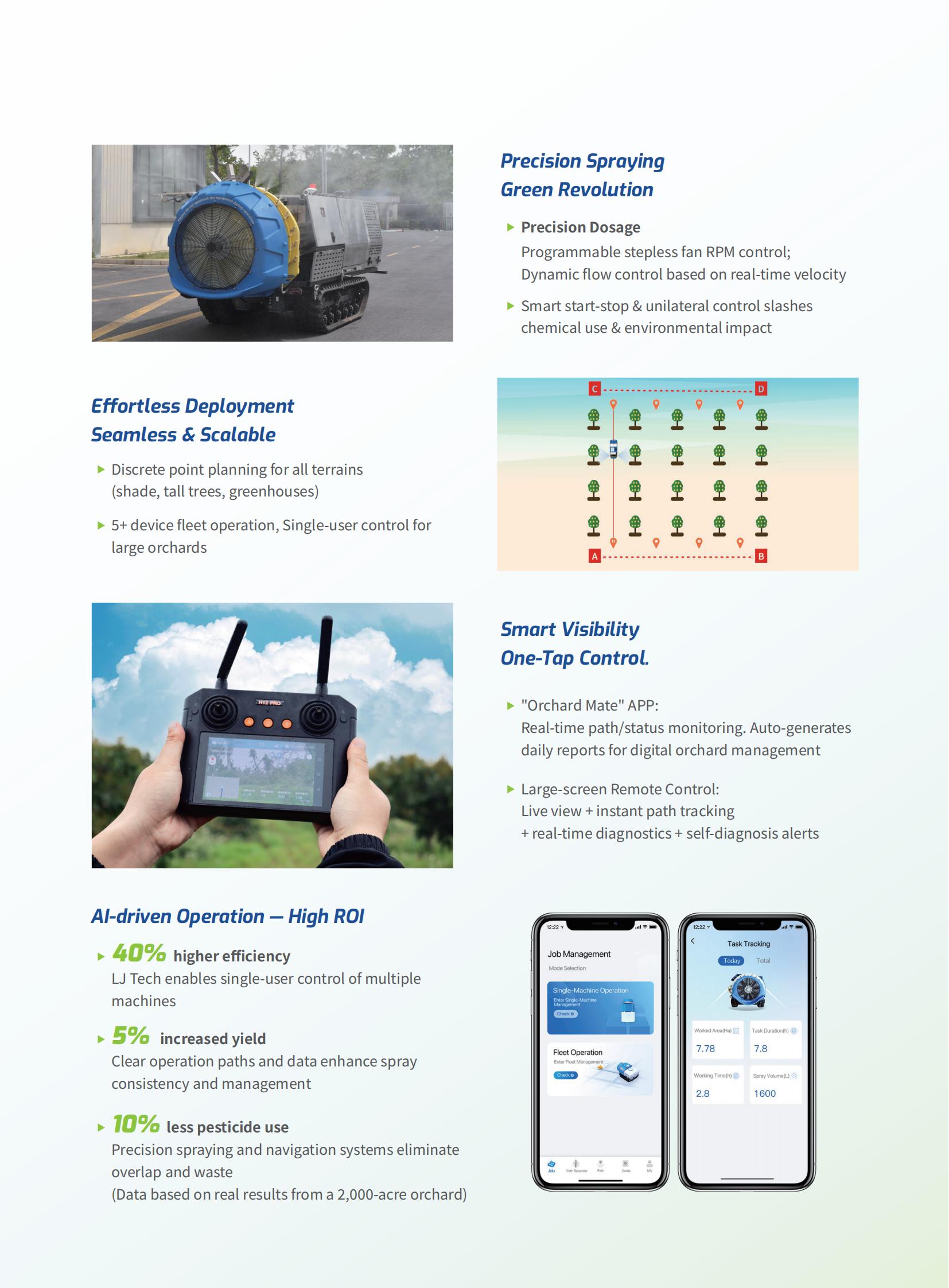

Professional Spraying Effect
· Proven technology. Patented spray system. Plant protection dedicated blower. Generates even and appropriate fog droplets.
· Spray from the bottom, can penetrate every leaf and both leaf sides.
Save labor to a greater extent!
· Unmanned efficient operation, no need for large quantity of workers. One worker can operate 2 autonomous sprayers at a time!
· Easy operation, no need for skillful driving.
· Large capacity, no need for frequent refilling pesticide and power.
Wider Application
· Crawler chassis.
Can shuttle in narrow corner.
Climb uneven grounds.
No fear of soil in rainy days.
· Dwarf and narrow body.
Can shuttle in greenhouses.
· Navigation enables work in darkness.
Customer Photos
